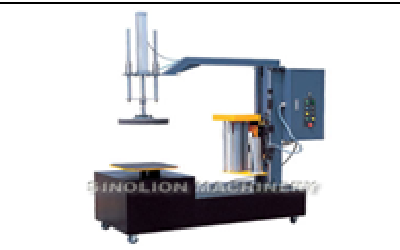

Machine introduction

Luggage wrapper is designed to wrap luggage and related items for security purpose in airport setting. Film provides extra support while the luggage is being transport to protect them from being damaged. The operator places the luggage on the platform and adjusts vertical rods to secure bag according the luggage's size.

Technical Data

1.1      Packing size
400-1200 mm (L)  × 18 0-400 mm (W) × 3 00-600 mm (H)

1.2      Turntable Capacity :  100Kg (max)
Load max weight should not exceed 100kg.
If load limit is exceeded, machine life span is shortened.

1.3   Power Supply:  AC 180 ~ 24 0V  50HZ  20A 1P

1.4  Power                                      0.85 KW

1.5  Turntable speed                   0~2 0 rpm

1.6    Machine Weight                    22 0Kg

1.7  Packaging efficiency           100-120 luggages/hour

1.8   Packing Materials :              stretch film,foil
                                                     Width : 500 mm
                                                    Inner Core : 76.2mm
                                                    Outer-Dia.  ≤ 260 mm
Control Panel




 You are most welcomed to visit our factory, designing drawings is only special for you.
  For more details , you can get from our free videos and pictures.

                                                    The machine meets CE certificate completely.
