Sinolion Factory


Sinolion,  your tailor made factory specialized in designing and manufacturing stretch wrapping machines with more than ten years experience

Sinolion machine simple operation, safe running and systematic programme

Sinolion, commited to do better for meeting clients satisfaction.

Widely application

our stretch wrapping machine widely used in the filed of food, beverage, chemical, electronic, paper industry and many many fields.

Our partners

We are the Chinese leader in the line of stretch wrapping equipments,  the reliable supplier of  Shell oil, Coca Cola,  LG, Sony Ericsson, Hengan paper etc.,

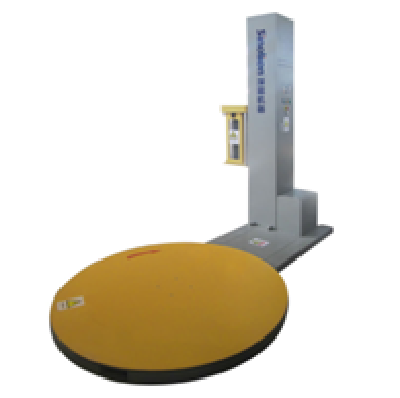

Our Stretch film wrapping machine --  T1500 F-L Stretch Wrapping Machine

The T1500F-L has been upgraded to include relocation of the film carriage, new
slimline electrical cabinet, film carriage relocated side mounted on the mast to
eliminate a pinch point, there is a easy connection with folding device between the base and mast, easy installation and pack.
We have kept all the great features and a new style mast to our New T1500F-L.
this entry level automatic pallet wrapper has a stylish and sturdy new mast including
all its safety features and a standard wrapping height of 1800mm, with a maximum
turntable speed of 15rpm.

Throughput
Up to 30 loads per hour

Ideal For
Replacing labor intensive hand wrapping & improving productivity
High value performance in load containment

Benefits
Suitable for any stretch film
Local service and support
Environmentally friendly - less film used  User friendly
Highest quality wrap with least amount of plastic

Features
Suitable for 50mm & 76mm film cores
220-240 VAC (10A) power supply
80mm turntable height
2000kg turntable capacity
1800mm standard wrap height
Turntable speed up to 15rpm
AC variable speed drives
PLC program
HMI operation
Variable Carriage Speeds
Photo eye sensor detects product height automatically
Selectable cycles (Full wrap - Light wrap - Top sheet)
Top and bottom wraps adjustable (1, 2 or 3)
Forklift transportable
Standard 12 month warranty

Options
Extended mast (2400mm,2600mm wrap height)
Standard low profile ramp (1500mm x 1250mm)

Safe package in shippment for your machine:
the machine was firmly fixed on the metal frame, out wrapped with stretch film and air bubble sheet , strong enough ,safe enough

Control system	PLC control system
	Photo eye pallet height sensor
	3-12 RPM variable turntable speed by frequency changer
Turntable	Go home position after wrap cycle finished
	Soft start/soft stop
	Heavy duty chain drive
Film carriage	Friction brake(Variable film tension control)
	Heavy duty chain carriage lift, calm and safety
Technology Data	Max load size(mm): 1200(L)X1200(W)X2400(H)
	Turntable dia: 1500mm
	Turntable Height: 77mm
	Turntable weight capacity: 2000kgs
	Turntable speed: 3-12rpm
	Electrics: 220V 50HZ 1 phase
	Power: 1.2 KW
	Packing efficiency: 20-40 load/h base on load
Option	Ramp
	Turntable dia: 1800mm, 2000mm
	Packing height: 2800mm
