Product Details
- Size: 2500mm X 2000mm X 2650mm
- Place of Origin: Jinan
- Brand Name: stretch wrapping machine
- Model Number: Y2000
- Weight: 1080.000 kg

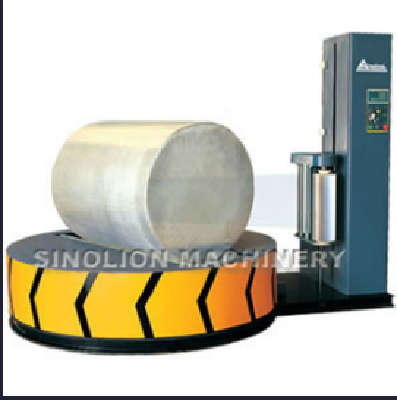

Stretch wrapping machine
Omron PLC control system, HMI (Human Machine Interfaces) easy to operate
Wrap times can be preset
Film Tension Control adjustment on the panel
Cycle pause capability
312RPM variable turntable speed by frequency changer
Variable roller speed by frequency changer
Safety push-pull emergency stop button
Turntable:
2000mm Diameter Structural steel plate
460mm height turntable
Position turntable alignment
Soft start /stop
Heavy duty chain drive
Film carriage:
Powered pre-stretch system up to 200% to min film consumption(Prestretch ratio can be specially made according your requirements. )
Film delivery variable speed by separate DC Drive Motor
Film dancer-bar with variable speed output
Option:
Powered pre-stretch system up to 200% to min film consumption(Prestretch ratio can be specially made according your requirements. )
Film delivery variable speed by separate DC Drive Motor
Film dancer-bar with variable speed output
Specification:
Wrapping size
Roll Diameter(mm) 1500
Roll Width(mm) 500
Roll Weight(max) 2000 kg
Packing efficency 20-30 rolls /hour
Machine
Dia. Of turntable 2000mm
Turntable speed 3-12rpm
Turntable Height 460mm
Power supply 2.0 kw/ AC380V
Machine weight 1080 kg
Dia. Of roller 150mm
Roller center distance 420mm
Machine dimension(mm) 2895 (L)X2000(W)X2300(H)
Air consume 1000ml/min
- Size: 2500mm X 2000mm X 2650mm
- Place of Origin: Jinan
- Brand Name: stretch wrapping machine
- Model Number: Y2000
- Weight: 1080.000 kg
