Product Details
- Size: (2745X1650X2260) mm
- Place of Origin: Jinan
- Brand Name: stretch wrapping machine
- Model Number: T1650F
- Weight: 700.000 kg

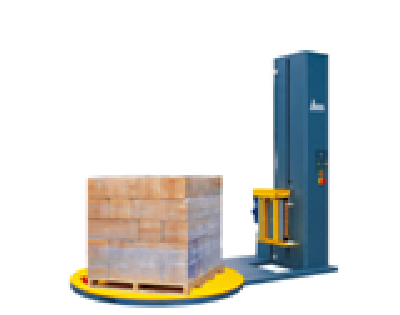

T series Pallet Wrapping Machine - T1650F Economic Pre-stretch Palletwrapp machine ---- Packing machine
Technology data
Max load size(mm) 1200(L)X1200(W)X2400(H)
Turntable diameter 1650mm
Turntable height 77mm
Turntable weight capacity 2000kgs
Turntable speed 3-12rpm
Machine weight 500kgs
Electrics 220V 50Hz 1Phase
Power 1.2kw
Machine dimensions (mm) 2625(L)X1650(W)X2895(H)
Packing efficiency 20-40load/h base on load
Control system
Photo-eye pallet height sensor
0-3 top(bottom)&up-down wrap times choose
3-12RPM variable turntable speed by frequency changer
Variable carriage up/down speed
Cycle pause capability
Turntable
Go home position after wrap cycle finished
Soft start/soft stop
Heavy duty chain drive Film carriage
Friction brake(variable film tension control)
Heavy duty chain carriage lift, calm and safety
Options
Ramp
Pneumatic top plate (T1650E-CS)
Packing height: 2800mm
Turntable diameter: 1800mm, 2000mm
Turntable capacity: 2500kgs, 3000kgs
